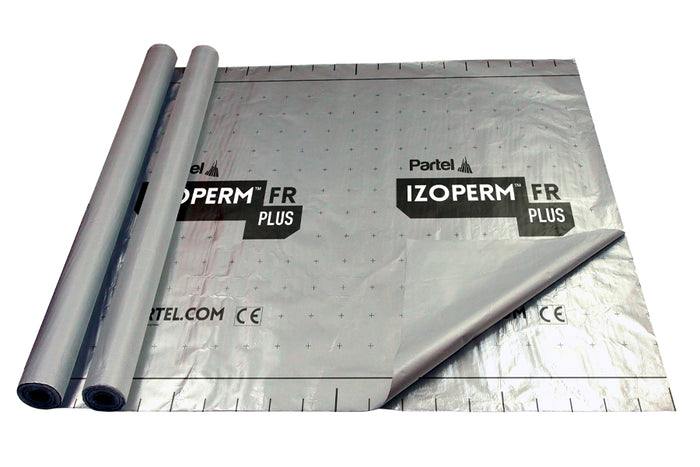

IZOPERM PLUS A2 – Fire-Rated Vapour Control Layer

Regular price £391.50 Sale

Availability: In Stock Out of Stock

Vendor: Partel UK

SKU: IZOPA21500


Fire-Rated Vapour Control Layer

IZOPERM PLUS A2 is a limited combustible vapour control layer with an A2-s1,d0 Reaction To Fire classification. This high-performance membrane is designed to protect building elements from degradation by restricting the movement of water vapour from inside the building to within the building structure, thus helping to prevent interstitial condensation. Additionally, it enhances the building fabric in terms of airtightness and energy efficiency, while also providing a high standard of fire performance.

Why Partel IZOPERM™ PLUS A2?

  • Reaction to fire classification A2-s1,d0, tested with Partel ECHOSEAL ALU FR adhesive tape to BS EN 13501-1
  • Fire rated and suitable for high rise constructions as per current Building Regulations
  • Vapour closed with an Sd value of 2000 m
  • Vapour resistance 10000 MNs/g
  • Airtight with an air permeability value of <0.01 m³/m²·h@50 Pa
  • Class W1 resistance to water penetration, to EN1928
  • Reflective material with a low emissivity of ≤ 0.05, improves thermal performance by reflecting up to 95% of a building’s interior heat loss
  • Its composite nature, based on lacquered aluminium, results in a stronger vapour control layer, providing superior structural stability for buildings
  • UKCA & CE compliant to EN 13984

Technical Data

WEIGHT EN-1849-2 175 g/m2
REACTION TO FIRE EN-13501-1 A2-s1,do
SD-VALUE EN-1931 2000 M
WATER RESISTANCE EN 1928 W1
EMISSIVITY EN 15956 ≤ 0.05
TENSILE STRENGTH MD/CD* EN 12311-1, mod-with
ELONGATION MD/CD* EN 13859 4/4%
NAIL TEAR RESISTANCE MD/CD*  EN-12310-1 170/150 N

Application

IZOPERM PLUS A2 is an air and vapour control layer designed for use on the warm side of insulation on wall, ceiling, floor and roof applications.

Suitable for:

  • Residential and commercial buildings
  • Timber and steel framed constructions
  • Roof, ceiling, wall and floor systems
  • Warm, cold and hybrid roof applications
  • Pitched or flat roofs
  • High-rise and high-risk buildings (schools, offices, commercial centres, hospitals, etc.)
  • All insulation types
  • In warmer countries, the vapour control membrane can be used externally as protective sheathing in high-rise buildings

    Dimensions

    • 1.2m X 50m=60m2 (3ft 9” X 164ft = 645.8 SF)
