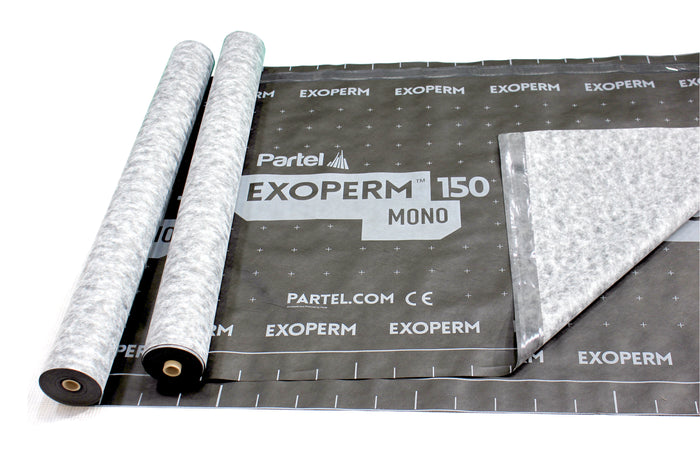

EXOPERM MONO 150 Connex - Breathable Monolithic Membrane

EXOPERM MONO 150 Connex - Breathable Monolithic Membrane

Regular price £194.00 Sale

Availability: In Stock Out of Stock

Vendor: Partel

SKU: EXO150C1500


Next generation monolithic membrane

EXOPERM MONO 150 Connex with integrated adhesive tapes provides enhanced protection of the building structure. It is strong, durable, incredibly vapour open with an Sd value of 0.07m, and boasts market-leading tensile strengths and nail tear resistance. The Monolithic layer creates a complete wind tight, waterproof, breathable membrane that expels any water/humidity.

Why Partel EXOPERM MONO 150 Connex?

  • Integrated tapes that facilitate easier, permanent connections
  • Developed based on Monolithic Technology
  • Highly breathable membrane with a low Sd value 0.07 m
  • Class W1 resistance to water penetration
  • Optimal UV and temperature resistance
  • Resistant to driving rain and wind
  • Windtight, but diffusion open
  • Airtight System, featuring an air permeance value of <0.001m3/(m2h)
  • Excellent aging resistance due to the Monolithic Technology
  • Helps to prevent structural damage in any types of buildings

Technical Data

WEIGHT EN 1849-2 150 G/M²
SD-VALUE M EN ISO 12572-C 0.07 M
WATER RESISTANCE EN 1928 W1 (BEFORE & AFTER AGEING)
TENSILE STRENGTH MD/CD EN 12311-1 255 / 145 N / 50mm
NAIL TEAR RESISTANCE MD / CD* EN 12310-1 130 / 160 N
TEMPERATURE RESISTANCE   -40°C TO 80°C
UV RESISTANCE   3 MONTHS

*MD = longitudinal CD = transversal

Application

EXOPERM MONO 150 Connex is an external breather membrane, with integrated adhesive tapes, designed for use on the cold side of insulation on facade wall and roof applications.

Suitable for:

  • Facades with closed joints
  • Timber and steel framed constructions
  • Warm, cold and hybrid roof applications
  • Pitched or flat roofs
  • Sarking boards
  • All insulation types

Monolithic Technology

EXOPERM MONO 150 Connex is a 3-Ply sarking, roof underlay and wind barrier with next generation monolithic functional layer and integrated adhesive tapes.

The monolithic functional layer provides enhanced protection for the building envelope:

  • transports vapour to outside
  • is vapour open whilst having excellent waterproofing properties
  • creates a complete wind tight, waterproof membrane that actively expels out any water/humidity, unlike most micro-porous membranes that rely on small pores (which have the tendency to block)

Dimensions

  • 1.5m X 50m=75m2 (59-1/16” X 164’-1/2” = 807 SF)
