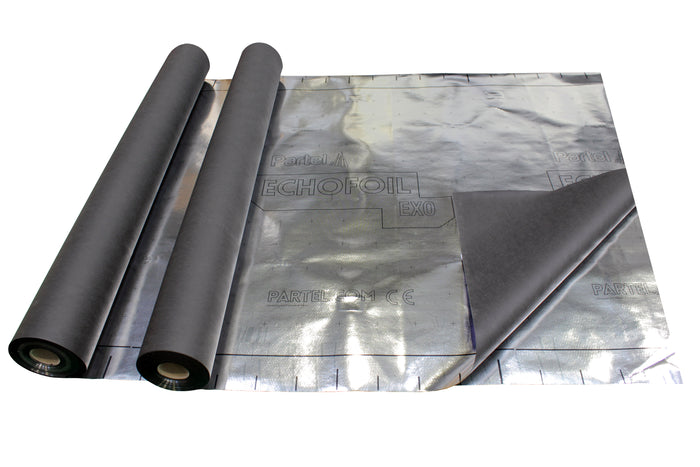

ECHOFOIL EXO - REFLECTIVE BREATHABLE MEMBRANE

ECHOFOIL EXO - REFLECTIVE BREATHABLE MEMBRANE

Regular price £350.00 Sale

Availability: In Stock Out of Stock

Vendor: Partel UK

SKU: ECHOFOIL EXO 2.7


Reflective Breather Membrane

The emissivity of a material is the ability of its surface to emit energy by radiation. The lower the emissivity value, the more reflective the material is – and the better the material performs as a thermal insulation layer in combination with an air gap. With an emissivity value of <0.05, the Partel ECHOFOIL EXO membrane improves thermal comfort and enhances airtightness in any type of building. Used in conjunction with ECHOFOIL IZO it increases thermal performance further and helps to deliver low U-values.

Why Partel ECHOFOIL EXO?

  • Low emissivity value <0.05
  • Enhances thermal performance with an of R-Value 0.78 m2K/W
  • Highly-breathable membrane with low Sd value (0.08 m)
  • Windtight and waterproof
  • Humidity controlling and insulating properties
  • Can be easily recycled due to the PP material
  • Cost savings

Technical Data

WEIGHT ISO 536 150 G/M²
SD-VALUE  EN ISO 12572 0.08 M
TENSILE STRENGTH MD/CD* EN 12311-1 300 / 250 N/50 mm
RESISTANCE TO WATER PENETRATION EN 13111 W2
TEMPERATURE RESISTANCE -20°C TO 80°C
R-VALUE (THERMAL RESISTANCE) BS ISO 9869 0.78M² K/W
EMISSION VALUE (AGED)
BS EN 15976 <0.05
EMISSION VALUE (UNAGED)
BS EN 15976 0.04

*MD = longitudinal CD = transversal

Application

  • External use
  • Roof and wall applications
  • Onsite or offsite construction
  • Timber frame, masonry and any type of buildings

    Dimensions

    • 2.7m X 50m = 135m² (8’10-19/64” x 164’-1/2” = 1453 SF)
    • 3m X 50m = 150m² (9’ 10-1/3”” X 164’-1/2” = 1615 SF)
